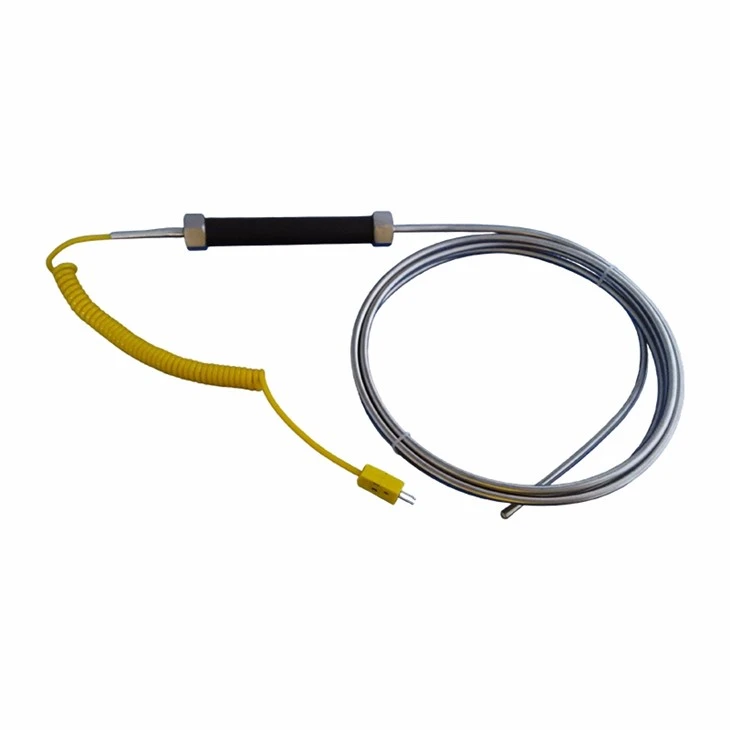

Dedicated rau Aluminium Molten Hlau: khoom Performance
Cov khoom yog ib qho tshwj xeeb sensor tsim rau aluminium alloy smelting, casting, thiab tuag-casting, daws teeb meem xws li kub kub (660 ~ 1200 degree), txhuas kua corrosion, thiab slag tsim. Muaj nyob rau hauv kev sib cuag (thermocouple) thiab tsis yog -kev tiv tauj (infrared) qauv, cov khoom xa cov lus teb ceev (tsawg dua los yog sib npaug li 3 vib nas this) thiab nyeem meej (± 0.5 ~ 1.5 degree), qhov tseem ceeb rau kev tswj xyuas qhov zoo tshaj plaws casting kub thiab txo qhov tsis xws luag xws li porosity. Txawm hais tias rau cov kab ntau lawm los yog nyob rau ntawm - qhov chaw sampling, Aluminium molten hlau tus pas ntsuas kub tiv taus yaig thiab thermal shock, ua kom muaj kev ntseeg siab nyob rau hauv ib puag ncig hnyav.
Ntau yam khoom hom rau kev ua Aluminium
Aluminium molten hlau tus pas ntsuas kub tsev neeg yog categorized los ntawm txoj kev ntsuas kom phim cov kev xav tau ntawm txhuas:
|
Yam khoom |
Hom |
Core Features & Applications |
|
Hu rau Sensors |
Aluminium -Tshwj xeeb Thermocouple (K/S/B/N Hom) |
High precision, corrosion{0}}resistant; rau smelting furnaces thiab tuav tanks |
|
Pov tseg Immersion Thermocouple |
Tus nqi qis, tsis muaj kev sib kis -; rau ntawm - site sampling |
|
|
Armored Aluminium Thermocouple |
Durable, hloov tau; rau tuag-vim rooj vag thiab qhov chaw nqaim |
|
|
Tsis yog -sib cuag Instruments |
Online Infrared Thermometer |
Kev soj ntsuam tas li, dej / cua txias; rau nruam casting kab |
|
Portable Infrared Thermometer |
Handheld, yooj yim siv; rau ntau- qhov cub kuaj xyuas |
Corrosion-Cov ntaub ntawv tiv taus & Qhov tseeb ntawm Aluminium Molten Metal Thermometer
Crafted nrog cov ntaub ntawv tailored rau aluminium ua, cov khoom ua tau raws li cov qauv kev ua tau zoo:
|
Cheebtsam |
Khoom siv |
Temperature Range & Nta |
|
Thermocouple Hlau |
K / S / B / N Hom |
K: 0 ~ 1200℃(tus nqi-zoo); S: 0 ~ 1600℃(siab kub); B: 0 ~ 1800℃(ultra- kub); N: 0 ~ 1300℃(thermal shock{10}}resistant) |
|
Tube tiv thaiv |
Silicon Nitride (Si₃N₄), Silicon Carbide (SiC) |
Si₃N₄: 0 ~ 1500℃(corrosion-resistant, nyiam); SiC: 0 ~ 1600℃(tus nqi-zoo) |
|
Junction Box |
Cast Aluminium / Stainless Hlau |
IP65 tiv thaiv, plua plav / dej tsis haum |
Nrog rau cov qib siab ntawm I Class (± 1.5 degree) mus rau II Chav Kawm (± 2.5 degree), Aluminium molten hlau tus pas ntsuas kub ua kom ruaj khov kub tswj rau txhuas ua, txhim kho cov khoom zoo thiab kev ua haujlwm zoo.
